RileyLink Remote Reset Switch

RileyLink Remote Reset Switch

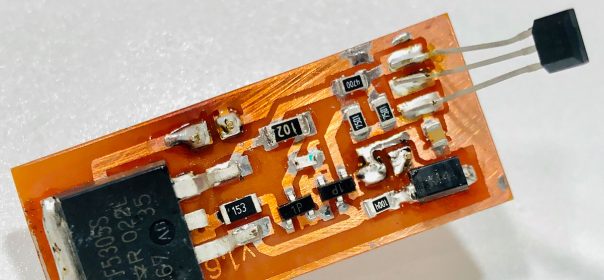

This is the final prototype of the reset switch to be used for RileyLink inside a completely water-proof case. It uses a neodymium magnet to turn the main power off and back on using a MOSFET w/o having to have a port-hole for a physical access to the main sliding power switch.

Click for link to EasyEDA share directory

Some 6.2KΩ registers were substituted wit 7.5KΩ

Casting a magnet to the sensor momentarily turns off the power to the RileyLink, effectively killing and rebooting it just as cycling back and forth the sliding switch would do, in the event RileyLink wigged out.

A slightly longer case is being milled out using Shaper Origin. We will post it as soon as we are done with it. Here’s a sneak preview:
